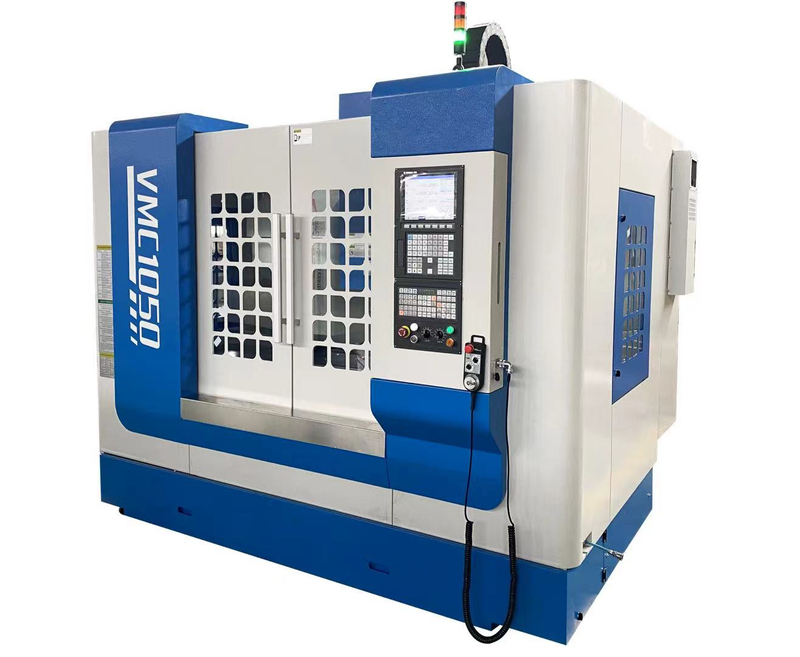

VMC855 VMC1050 VMC1160 VMC1270

Table size

mm

1000x500

1000x550

1200×600

1400x700

1600x800

Table   travel X/Y/Z

mm

800/500/500

850/550/550

1000/600/600

1300\700\700

1500\800\700

Distance   between spindle and table surface

mm

150-650

120-670

120-720

110-810

BT40:190-890

Spindle   center to column surface

mm

550

595

650

750

855

Rapid feed speed X

m/min

24

24

24

20

20

Rapid   feed speed Y

m/min

24

24

24

20

20

Rapid feed speed Z

m/min

20

20

20

18

18

Cutting   feed rate

mm/min

1-10000

1-10000

1-8000

1-10000

Max table load

kg

500

600

800

1000

1500

T-slot   (N/W/D)

5/18/100

5/18/100

5/18/100

18x5

5/22/135

Spindle speed range

rpm

10000（optional   12000）

10000（optional   12000）

10000（optional   12000）

8000（optional 12000）

Spindle   diameter

mm

150

150

150

Spindle taper

/

BT40

BT40

BT40

BT40

BT40

Spindle   motor power

kw

7.5

7.5

7.5/11

11

11/15

Magazine capacity

T

24

24

24

24

24

Tool   magazine type

Disk   type with arm

Disk   type with arm

Disk   type with arm

Disk   type with arm

Disk   type with arm

Max tool diameter

mm

Φ80/150

Φ80/150

Φ80/150

Max   tool length

mm

200

200

200

200

200

Max tool weight

kg

8

8

8

8

8

Overall   size

mm

2750×2300×2300

2750×2300×2300

3350×2300×2550

3700x2750x2800

Net weight

kg

4500

5300

5800

9200

12000
