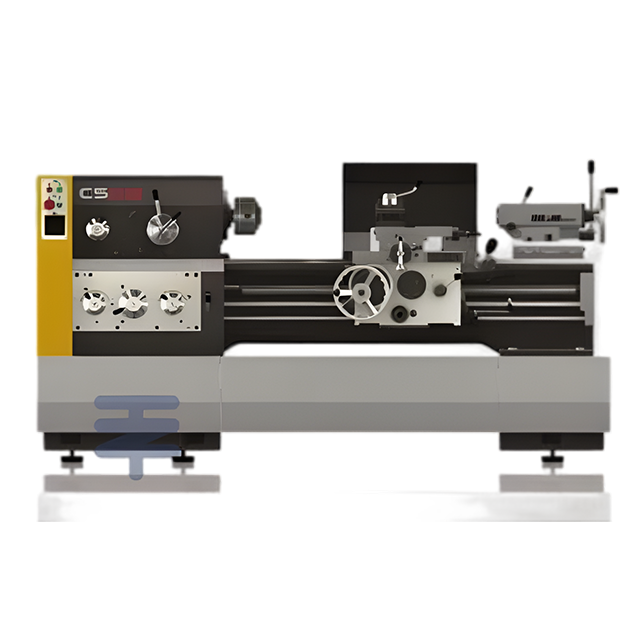

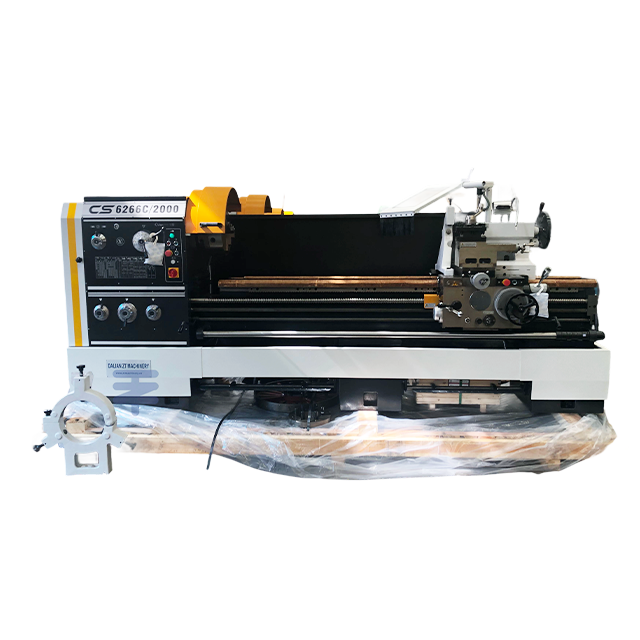

Small Size Manual Lathe

—It can perform internal and external turning, taper turning, end

facing, and other rotary parts turning;

—Threading Inch, Metric, Module and D.P.;

—Perform drilling, boring and groove broaching;

—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

B: spindle bore 82mm; C: Spindle bore: 105mm

Item	CS6240B(C)	CS6250B(C)		CS6266B(C)
Max. Swing dia. Over bed	400mm	500mm		660mm
Max. Swing dia. Over cross slide	200mm	300mm		420mm
Max. Swing dia. Over gap	630	710mm		870mm
Effective length in gap	240mm
Max. Workpiece length	750/1000/1500/2000/3000mm
Max. Turning length	700/950/1450/1950/2950mm
Spindle bore diameter	82mm(105mm)
Taper of spindle bore	B: Φ90 1:20;		C:Φ113 1:20
Type of spindle nose	ISO702/II No.8
Spindle speeds	12 steps; 36-1600r/min
Tool section	25x25mm
X-axis feedratio	50Hz:1.9rpm; 60Hz:2.3rpm
Z-axis feedratio	50Hz:4.5rpm;60Hz:5.4rpm
X-axis feeds	B:0.012-2.73 93kinds		C: 0.027-1.07 65kinds
Z-axis feeds	B:0.028-6.43 93kinds		C: 0.63-2.52 65kinds
Metric threads range	B:0.5-224 48kinds		C: 1-14mm 22kinds
Inch threads range	B:72-1/8TPI 46kinds		C: 28-2 TPI 25 kinds
Module thread range	B:0.5-112 42kinds		C: 0.5-7mm 18kinds
Diametric pitch threads	B:56-1/4DP 45kinds		C: 56-4DP 24 kinds
Tailstock quill diameter	Φ75mm
Max. Travel of tailstock quill	150
Taper of tailstock quill	Morse No.5
Main motor power	7.5kW
Coolant pump motor power	0.12kW
