Applications & Features

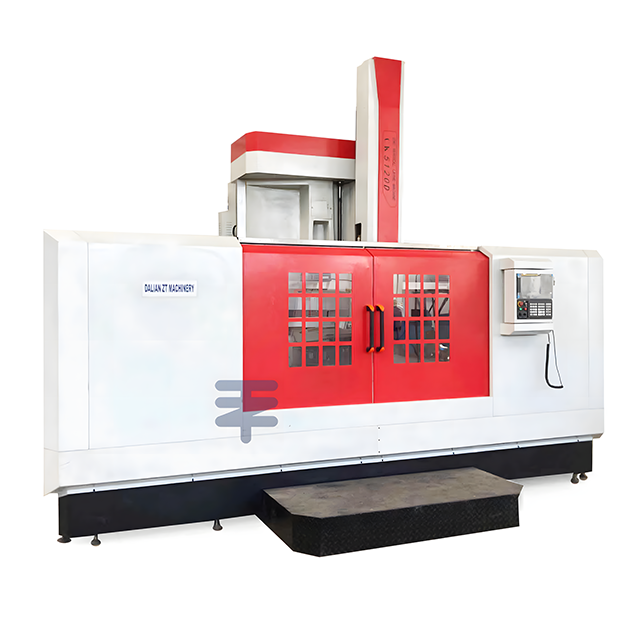

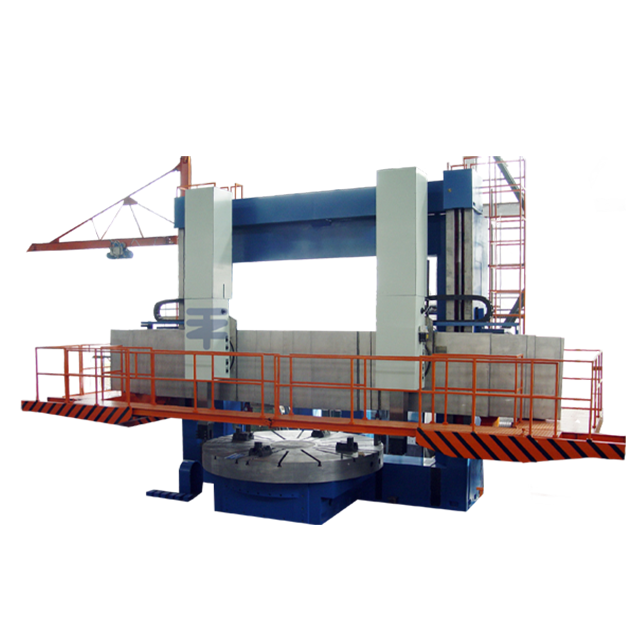

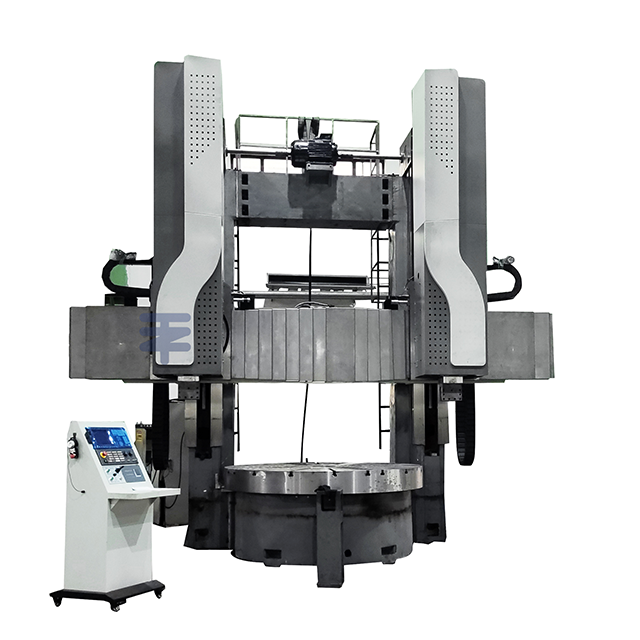

This series of CNC vertical lathes is mainly suitable for high-speed steel, carbide cutting tools, and ceramic cutting tools. It is used for rough and precision turning of inner and outer cylindrical surfaces, inner and outer conical surfaces, threads, and circular arc surfaces of black metals, non-ferrous metals, and some non-metallic parts.
The columns adopt a closed structure of gantry frame, and through finite element analysis calculation, the structural dimensions and stress state are optimized.
The worktable and worktable base adopt an integral casting heat symmetric structure, which has good rigidity, strength, and thermal stability.
The main transmission adopts a horizontal gearbox, which achieves the speed range of the worktable through two speed four speed or 16 speed transmission mechanisms.
Item | CK5225 | CK5231 | CK5235 | CK5240 | ||||
Max. workpiece diameter (mm) | 2500 | 3150 | 3500 | 4000 | ||||
Worktable diameter (mm) | 2250 | 2250/2830 | 2250/2830/3200 | 2830/3000/3200/3400 | ||||
Max. workpiece height (mm) | 1600/2000/2200/2500 | 1600/2000/2200/2500 | ||||||
Max. workpiece weight (kg) | 10000/16000/20000 | 10000/16000/20000/32000 | 10000/16000/20000/32000 | |||||
Horizontal travel of right tool post (mm) | -50-1500 | -50-1800 | -50-2100 | -50-2300 | ||||
Vertical travel of right tool post (mm) | 1000/1250/1400/1500/1600 | 1000/1250/1400/1500/1600 | ||||||
Horizontal travel of left tool post (mm) | -50-1500 | -50-1800 | -50-2100 | -50-2300 | ||||
Vertical travel of left tool post (mm) | 1000/1250/1400/1500/1600 | 1000/1250/1400/1500/1600 | ||||||
Max. worktable torque (KN.m) | 63 | |||||||
Beam travel (mm) | 1250/1650/1850/2150 | 1250/1650/1850/2150 | ||||||
Beam lifting speed (mm/min) | 350 | |||||||
Beam lifting motor power (kW) | 11 | 11/15 | ||||||
Main motor power (kW) | 55kW (normal AC)/55kW (AC servo optional) | |||||||
Section of tool holder (mm) | 50x40/40x40 | |||||||
Swivel angle of tool holder (°) | (left tool post by PLC control) | |||||||
Tool post type | Square tool post, T-shaped tool post, manual pentagonal tool post; right tool post---electric (optional 4, 5 and 6-P) | |||||||
Worktable guide way | Dynamic pressure guide rail/static pressure guide rail | |||||||
Floor size(LxW/mm) | 5800x5500 | 6500x6000 | 7000x6100 | 7500x6300 | ||||
X/Z-axis positioning accuracy | 0.025/1000mm | |||||||
X/Z-axis repeatability | 0.010/1000mm | |||||||
