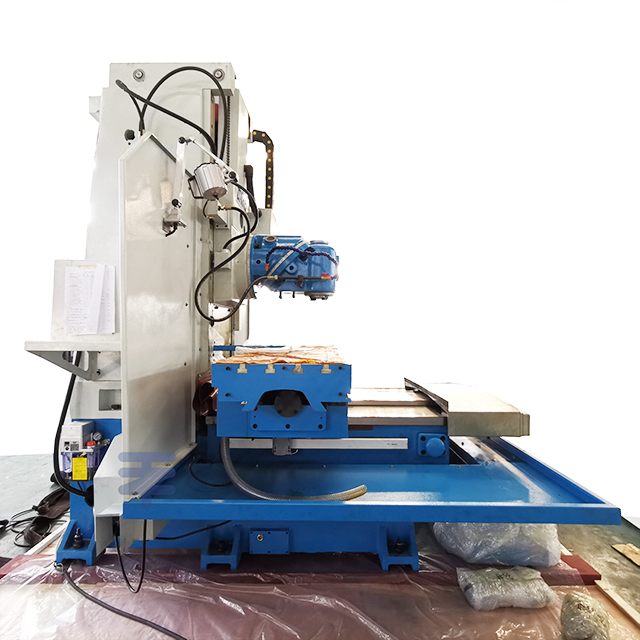

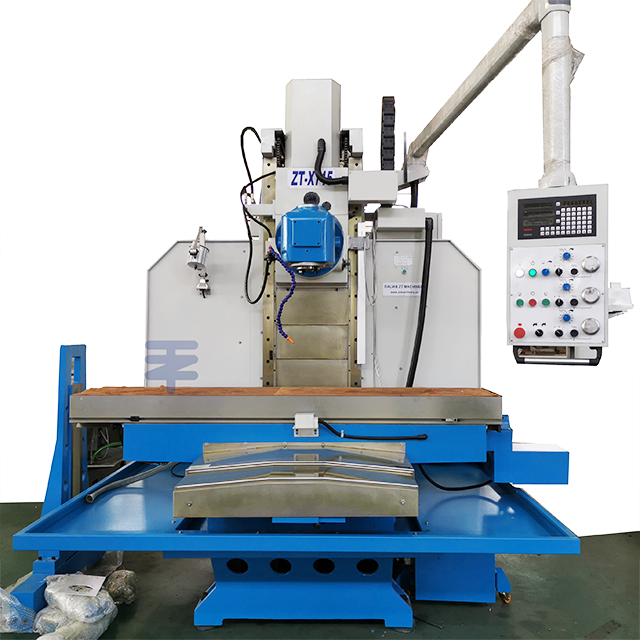

Bed Type Milling Machine

Features

All guides are hardened, ground and supplied with oil by a central lubrication unit.
Universal swivel head swings easily to a horizontal position.
Servo-motor on all axes, infinitely variable feed, rapid feed, and speed control.
Electronic hand-wheels on all axes.
Ball screw drive on all axes
Powerful main motor.

Specifications	Unit	ZT-X715	ZT-X716
Spindle hole taper	mm	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	Variable 6-300,30-1500	Variable 6-300,30-1500
Distance between spindle axis and column guideway	mm	8-660	8-660
Distance between spindle nose and table surface(V)	mm	0-650	0-700
Distance between spindle axis and table surface(H)	mm	8-660	8-660
Table size	mm	2200*500	2500*600
T slots	mm	5/20/100	5/20/100
Table travel-X	mm	1500	1800/2000
Table travel-Y	mm	650	700
Table feed-X/Y	mm/min	2.5-3000	2.5-3000
Table feed-Z	mm/min	2.5-2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power	Kw	11	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	18/23/18
Cooling pump motor power	W	90	90
Overall size	mm	322024202800	438025202800
Weight	kg	7300	9000
