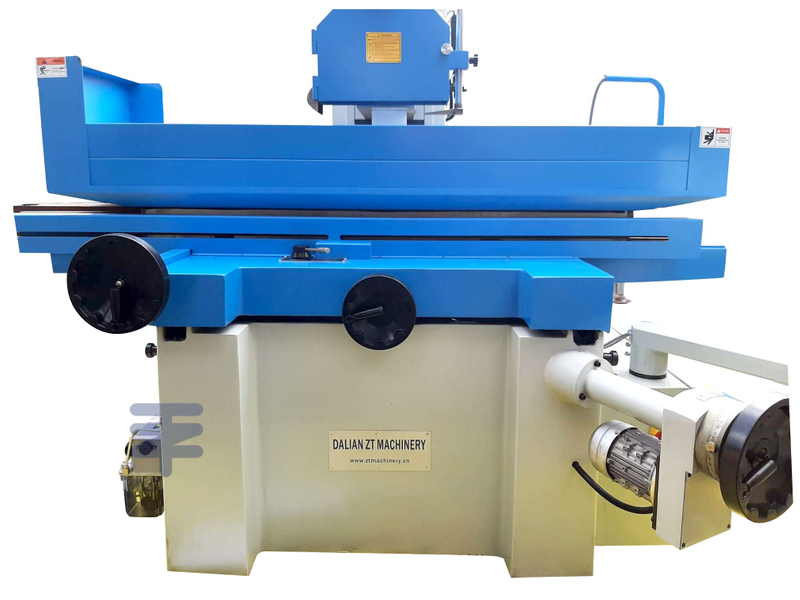

Saddle Moving Surface Grinding Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Item	SG-3063R	SG-3063A	SG-30100R	SG-30100A	SG-4080R	SG-4080A	SG-40100R	SG-40100A
Table size	305*635mm	305*635mm	300*1020mm	300*1020mm	406*813mm	406*813mm	406*1020mm	406*1020mm
Magnetic chuck size	300*600mm	300*600mm	300*1000mm	300*1000mm	400*800mm	400*800mm	400*1000mm	400*1000mm
Max. Distance from spindle center to table	580mm	580mm	580mm	580mm	580mm	580mm	580mm	580mm
Table cross travel	340mm	340mm	340mm	340mm	450mm	450mm	450mm	450mm
Table longitudinal travel	765mm	765mm	1130mm	1130mm	910mm	910mm	1130mm	1130mm
Max. Loading capacity (including chuck)	270kg	270kg	400kg	400kg	500kg	500kg	600kg	600kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min	5-25m/min	5-25m/min	5-25m/min	5-25m/min	5-25m/min
Intermittent cross feed rate	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid cross speed	990mm/min	990mm/min	990mm/min	990mm/min	990mm/min	990mm/min	990mm/min	990mm/min
Feed of cross hand wheel	0.02mm/div	0.02mm/div	0.02mm/div	0.02mm/div	0.02mm/div	0.02mm/div	0.02mm/div	0.02mm/div
Auto down feed rate		0.005-0.5mm/t		0.005-0.5mm/t		0.005-0.5mm/t		0.005-0.5mm/t
Rapid down speed	650mm/min	480mm/min	650mm/min	480mm/min	650mm/min	480mm/min	650mm/min	480mm/min
Feed of down hand wheel	0.005mm/div.	0.005mm/div.	0.005mm/div.	0.005mm/div.	0.005mm/div.	0.005mm/div.	0.005mm/div.	0.005mm/div.
Spindle speed	1450(50Hz)/1750(60Hz)		1450(50Hz)/1750(60Hz)		1450(50Hz)/1750(60Hz)		1450(50Hz)/1750(60Hz)
Grinding wheel size	35040127mm		35040127mm		35040127mm		35040127mm
Spindle motor power	4kW		4kW		4kW		4kW
Floor space (LWH)	290022001900mm		440022001900mm		360024001900mm		440024001900mm
Gross weight	2800kg		3200kg		3400kg		3700kg
Packing size	235022002210mm		295022002210mm		285022702210mm		295022702210mm
