FEATURES:

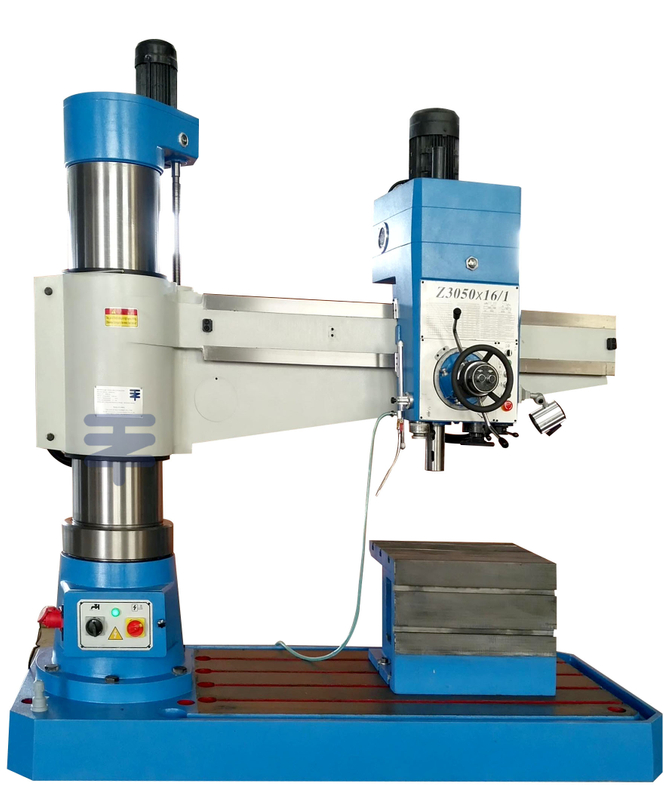

The radial drilling machine is the universal machine for general purposes, and suitable for drilling, counter boring, reaming, spot facing and tapping on mediator Large sized parts. Boring is also possible where such technological equipment is available.
Model | Unit | Z3050×16/I | Z3063×20/1 | Z3080×25 | Z30100×31 |
Max drilling diameter | mm | 50 | 63 | 80 | 100 |
Distance between spindle axis and column (min/max) | mm | 350/1600 | 450/2000 | 500/2500 | 570/3150 |
Distance between spindle axis and working surface of machine base (min/max) | mm | 320/1220 | 400/1600 | 550/2000 | 750/2500 |
Rang of spindle speed | r/mm | 25-2000 | 20-1600 | 16-1250 | 8-1000 |
Number of spindle speed | No. | 16 | 16 | 16 | 22 |
Rang of spindle feeds | mm | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.06-3.2 |
Spindle taper(Mohs) | No. | 5# | 5# | 6# | 6# |
Number of spindle feeds | No. | 16 | 16 | 16 | 16 |
Spindle travel | mm | 315 | 400 | 450 | 500 |
Worktable dimensions | mm | 630×500 | 800×630×500 | 1000×800×560 | |
Power of main motor | kW | 4 | 5.5 | 7.5 | 15 |
Weight of the machine | kg | 3500 | 7000 | 11000 | 20000 |
Overall dimensions of the machine | mm | 2500x1070x2840 | 3080×1250×3205 | 3730×1400×3795 | 4660×1630×4525 |
Standard accessories:
Worktable 1 set
Foundation bolt 6 pcs
Reducing sleeve 4 pcs
Wedge 2 pcs
