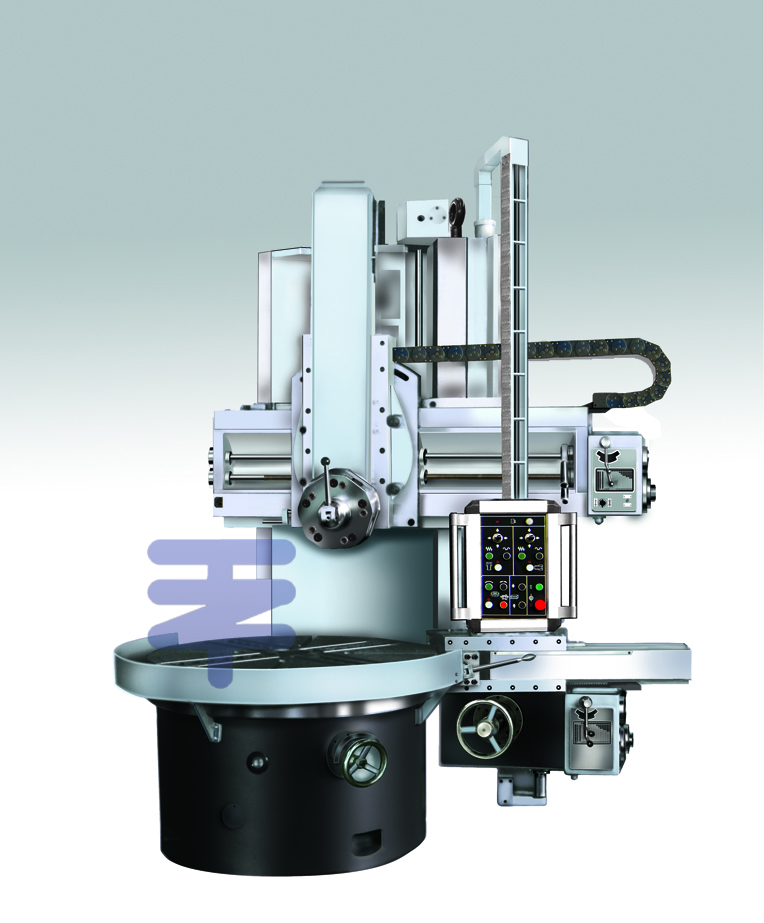

DVT51 Single column series of programmable manual vertical lathe
● Upgraded model of traditional manual vertical lathe;
● Servo feed motor and ballscrew structure is adopted;
● PLC controller is used to replace relay control;
● Simple mechanical structure and lower fault rate;
● DRO is equipped to easier operation;
Item | Model/unit | DVT5112 | DVT5116 | DVT5120 | DVT5123 | DVT5126 |
mm | 1250 | 1600 | 2000 | 2300 | 2300 | |
Worktable diameter | mm | 1000 | 1400 | 1800 | 2000 | 2000 |
Max. workpiece height | mm | 1000 | 1000 | 1250 | 1250 | 1250 |
Max. workpiece weight | t | 3.2 | 5 | 8 | 8 | 8 |
Max. worktable torque | KN.m | 17.5 | 25 | 32 | 32 | 32 |
Worktable speed(16 steps) | r/min | 6.3-200 | 5-160 | 3.2—100 | 3.2-100 | 3.2-100 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 25 |
Max swivel angle of vertical tool post | ° | ±30° | ±30° | ±30° | ±30° | ±30° |
Tool post feed rate (stepless) | mm/min | 0.8-86 | 1-500 | 1-500 | 1-500 | 1-500 |
Transverse travel of vertical tool post | mm | 700 | 915 | 1190 | 1320 | 1320 |
Ram travel of vertical tool post | mm | 650 | 800 | 1000 | 800 | 800 |
Rapid movement of tool post | mm/min | 1800 | 2000 | 2000 | 2000 | |
Up/Down speed of cross beam | mm/min | 350 | 440 | 440 | 440 | 440 |
Tool shank section (WxH) | mm | 30x40 | 40×40 | 40×40 | 40×40 | 40×40 |
Main motor power | KW | 22 | 30 | 37 | 37 | 37 |
Overall dimensions of machine (LxWxH) (approx.) | mm | 2660×2740×3530 | 3200×2800×3850 | 3210×2850×3300 | 3210×2850×3300 | |
Weight of machine (approx..) | t | 12 | 17 | 18 | 18 |

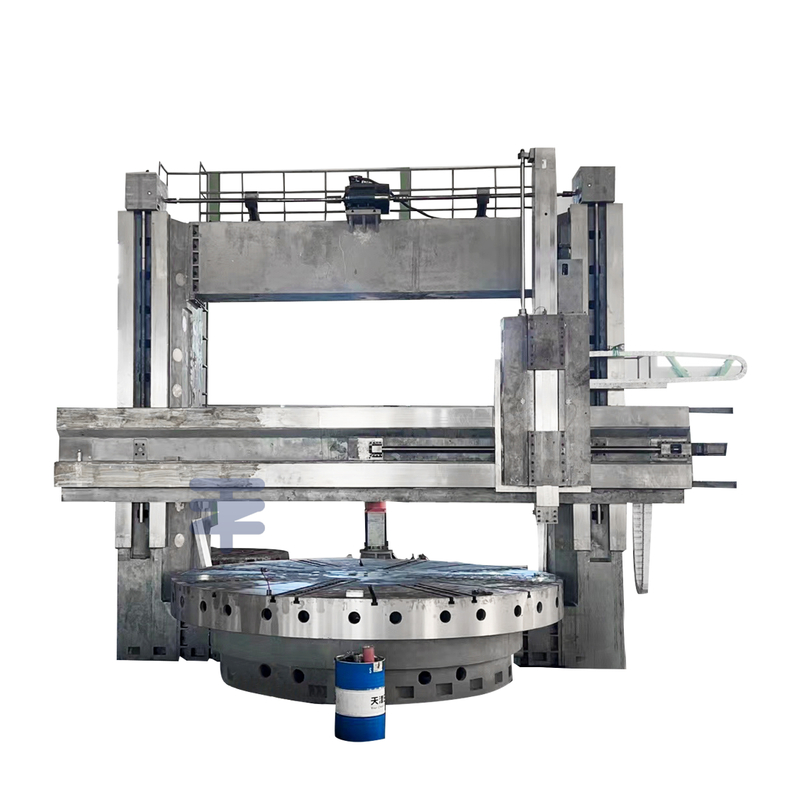

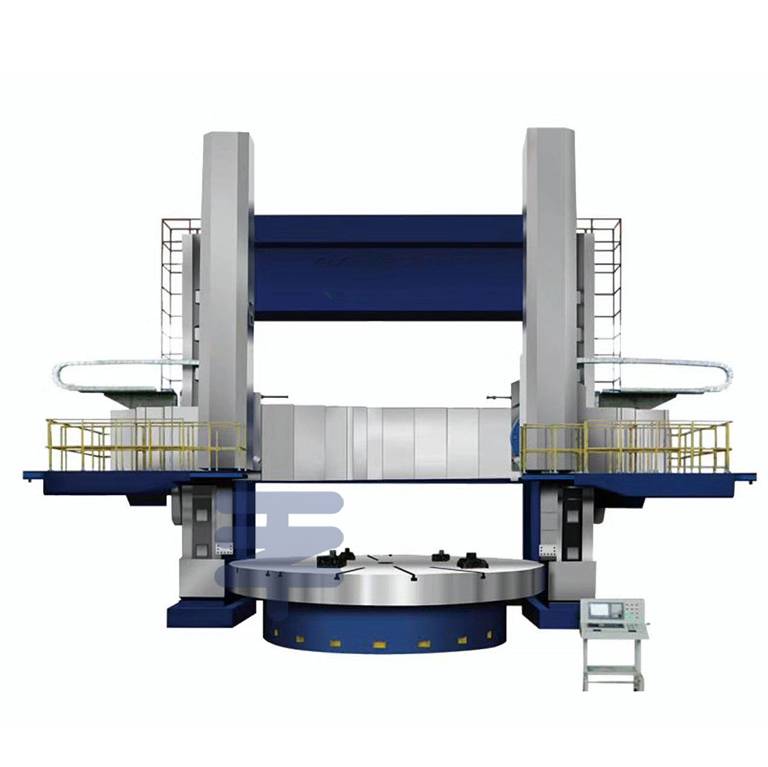

DVT52 Double column series of programmable manual vertical lathe
● It’s upgraded model of normal manual double column vertical lathe;
● It’s driven with servo feed motor, planetary reducer and ballscrew to reach simple structure, easy operation and lower fault rate.
● This series of large vertical lathe is widely used in industries such as machinery, mining and metallurgy, automobiles, and electricity etc., features with stable accuracy, easy operation, safety & reliability and long service life.
Item | DVT5225 | DVT5231 | DVT5235 | DVT5240 | |||
Max. workpiece diameter (mm) | 2500 | 3150 | 3500 | 4000 | |||
Worktable diameter (mm) | 2250 | 2250/2830 | 2250/2830/3200 | 2830/3000/3200/3400 | |||
Max. workpiece height (mm) | 1600/2000/2200/2500 | 1600/2000/2200/2500 | |||||
Max. workpiece weight (kg) | 10000/16000/20000 | 10000/16000/20000/32000 | 10000/16000/20000/32000 | ||||
Max. worktable torque (KN.m) | 63 | ||||||
Beam travel (mm) | 1250/1650/1850/2150 | 1250/1650/1850/2150 | |||||
Beam lifting speed (mm/min) | 350 | ||||||
Beam lifting motor power (kW) | 11 | 11/15 | |||||
Main motor power (kW) | 55kW (regular AC)/55kW (AC servo optional) | ||||||
Section of tool holder (mm) | 50x40/40x40 | ||||||
Swivel angle of tool holder (°) | |||||||
Tool post type | Square tool post, T-shaped tool post, manual pentagonal tool post | ||||||
Worktable guide way | Dynamic pressure guide rail/static pressure guide rail | ||||||
Floor size(LxW/mm) | 5800x5500 | 6500x6000 | 7000x6100 | 7500x6300 | |||
Weight of machine (T) | 34-42 | 39-45 | 42-58 | 43-63 | |||
The design is subject to change without notice in advance.
DVT51 Single column series of programmable manual vertical lathe
● Upgraded model of traditional manual vertical lathe;
● Servo feed motor and ballscrew structure is adopted;
● PLC controller is used to replace relay control;
● Simple mechanical structure and lower fault rate;
● DRO is equipped to easier operation;
Item | Model/unit | DVT5112 | DVT5116 | DVT5120 | DVT5123 | DVT5126 |
mm | 1250 | 1600 | 2000 | 2300 | 2300 | |
Worktable diameter | mm | 1000 | 1400 | 1800 | 2000 | 2000 |
Max. workpiece height | mm | 1000 | 1000 | 1250 | 1250 | 1250 |
Max. workpiece weight | t | 3.2 | 5 | 8 | 8 | 8 |
Max. worktable torque | KN.m | 17.5 | 25 | 32 | 32 | 32 |
Worktable speed(16 steps) | r/min | 6.3-200 | 5-160 | 3.2—100 | 3.2-100 | 3.2-100 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 25 |
Max swivel angle of vertical tool post | ° | ±30° | ±30° | ±30° | ±30° | ±30° |
Tool post feed rate (stepless) | mm/min | 0.8-86 | 1-500 | 1-500 | 1-500 | 1-500 |
Transverse travel of vertical tool post | mm | 700 | 915 | 1190 | 1320 | 1320 |
Ram travel of vertical tool post | mm | 650 | 800 | 1000 | 800 | 800 |
Rapid movement of tool post | mm/min | 1800 | 2000 | 2000 | 2000 | |
Up/Down speed of cross beam | mm/min | 350 | 440 | 440 | 440 | 440 |
Tool shank section (WxH) | mm | 30x40 | 40×40 | 40×40 | 40×40 | 40×40 |
Main motor power | KW | 22 | 30 | 37 | 37 | 37 |
Overall dimensions of machine (LxWxH) (approx.) | mm | 2660×2740×3530 | 3200×2800×3850 | 3210×2850×3300 | 3210×2850×3300 | |
Weight of machine (approx..) | t | 12 | 17 | 18 | 18 |
DVT52 Double column series of programmable manual vertical lathe
● It’s upgraded model of normal manual double column vertical lathe;
● It’s driven with servo feed motor, planetary reducer and ballscrew to reach simple structure, easy operation and lower fault rate.
● This series of large vertical lathe is widely used in industries such as machinery, mining and metallurgy, automobiles, and electricity etc., features with stable accuracy, easy operation, safety & reliability and long service life.
Item | DVT5225 | DVT5231 | DVT5235 | DVT5240 | |||
Max. workpiece diameter (mm) | 2500 | 3150 | 3500 | 4000 | |||
Worktable diameter (mm) | 2250 | 2250/2830 | 2250/2830/3200 | 2830/3000/3200/3400 | |||
Max. workpiece height (mm) | 1600/2000/2200/2500 | 1600/2000/2200/2500 | |||||
Max. workpiece weight (kg) | 10000/16000/20000 | 10000/16000/20000/32000 | 10000/16000/20000/32000 | ||||
Max. worktable torque (KN.m) | 63 | ||||||
Beam travel (mm) | 1250/1650/1850/2150 | 1250/1650/1850/2150 | |||||
Beam lifting speed (mm/min) | 350 | ||||||
Beam lifting motor power (kW) | 11 | 11/15 | |||||
Main motor power (kW) | 55kW (regular AC)/55kW (AC servo optional) | ||||||
Section of tool holder (mm) | 50x40/40x40 | ||||||
Swivel angle of tool holder (°) | |||||||
Tool post type | Square tool post, T-shaped tool post, manual pentagonal tool post | ||||||
Worktable guide way | Dynamic pressure guide rail/static pressure guide rail | ||||||
Floor size(LxW/mm) | 5800x5500 | 6500x6000 | 7000x6100 | 7500x6300 | |||
Weight of machine (T) | 34-42 | 39-45 | 42-58 | 43-63 | |||
The design is subject to change without notice in advance.
