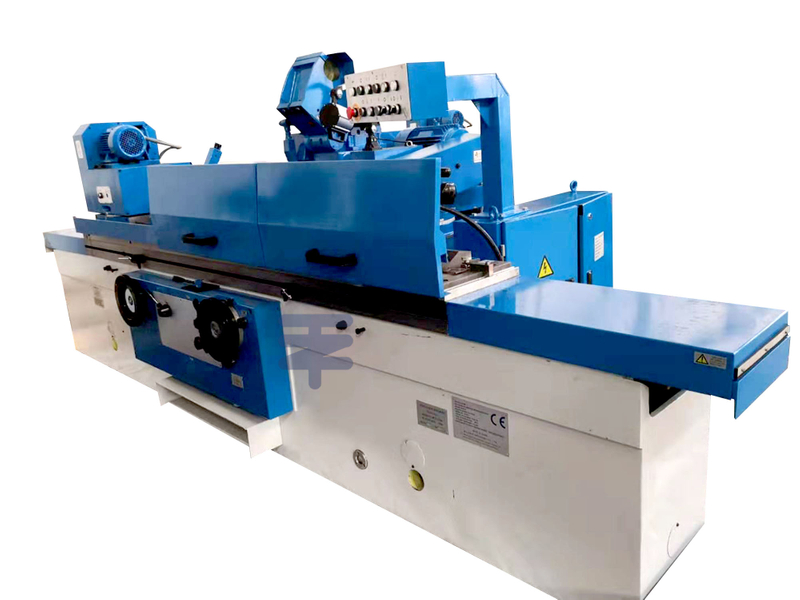

The Universal Cylindrical Grinding Machine is designed for grinding cylindrical or conical external surface with accuracy of IT5 and IT6. It is most suitable for tooling or repair workshop in small batch production. The longitudinal travel of worktable is controlled steplessly by hydraulic system or by hand wheel. The infeed of wheel head is carried out by hydraulic automatic periodic feed and also by hand wheel. The rapid approach and withdrawal of wheel head retracting of tailstock center lubrication of slide way and lead-screw are all hydraulically controlled.
Item | M1420 | M1432B | M1440 | ME1450 | M1363 | M1380 |
OD grinding diameter | Φ8-200 | Φ8-320mm | Φ150-400mm | Φ30-500mm (with/without steady rest) | Φ50-630mm (with/without steady rest) | Φ50-800mm (with/without steady rest) |
ID grinding diameter | Φ13-100 | Φ30-100mm | Φ16-125mm | Φ25-200mm | --- | ---- |
Center height | 135mm | 180mm | 220mm | 270mm | 335mm | 500mm |
Work head spindle speed | 50Hz:25-380 rpm stepless | 8-200rpm | 6-80r/min | |||
Max. Travel of table | 650mm/950mm | 1100/1600/2100/3100mm | 1000/1500mm | Ra0.32 | Ra0.32 | Ra0.32 |
Hydraulic transverse speeds | 0.1-4 | 35/26.5m/s | 35m/s | 35m/s | ||
Max. Workpiece weight | 50kg | 150kg | 150kg | 1000kg | 2000/3000kg | 5000kg |
Grinding length External/Internal | 500/125mm | 1000,1500,2000,3000mm | 1500,2000,3000mm | 3000,4000,5000mm | 3000,4000,5000mm | |
Swivel range of grinding wheel | -5~+90° | 50-75mm | 75mm | 75mm | ||
External wheel size | Max.Φ400x50x203mm | Φ400x50x203mm | ¢600x63x¢305mm/¢450x63x¢305mm | ¢900x75x¢305mm/¢750x75x¢305mm | ¢900x75x¢305mm/¢720x75x¢305mm | |
Internal wheel spindle rotating speed | 16000rpm | 10000/20000rpm | ||||
Work head and tailstock center | Morse No.4 | Morse No.4 | Morse No.4 | Morse 6 | Metric 80# | Metric 100# |
Total motor power | 5.625 | 9kW | 9kW | 13.85kW | 34.52kW | 39.98kW |
