FEATURES:

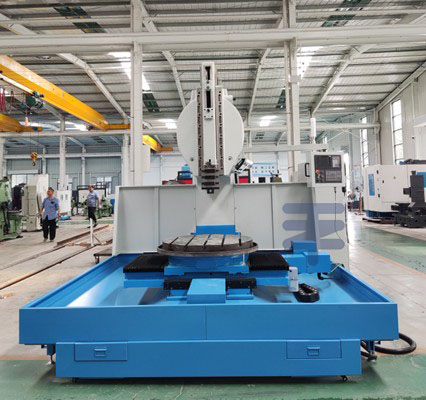

This series of CNC cutting machines can achieve multi angle machining through the rotation of ram, and they are mainly suitable for industries such as gearboxes, planetary gearboxes, aviation instruments, and automotive transmissions. The CNC slotting machine can be equipped with a built-in rotary worktable to achieve pin indexing function.
Tech specifications | Unit | BK5030 | BK5032 | BK5040 | BK5050 |
Max. ram length | mm | 300 | 320 | 400 | 500 |
Ram adjustment stroke | mm | 300 | 315 | 315 | 430 |
Number of ram movements | n/min | 20-120 | 20-80 | 20-80 | 0-50 |
Work table size | mm | 550*410 | 800*610 | 800*610 | Φ1000 |
Work table trave (X-axis; Y-axis) | mm | 250*300 | 350*400 | 350*400 | 660*1000 |
Distance between the axis of the tool bearing hole and front of the column | mm | 505 | 600 | 600 | 990 |
Distance between the end face of the cutter support hole and the work table | mm | 540 | 540 | 720 | 740 |
X-axis motor torque | (N.M) | 6 | 7.7 | 7.7 | 23 |
Y-axis motor torque | (N.M) | 6 | 7.7 | 7.7 | 35 |
Ball screw (X-axis) | FFZD3205-3/P4 | FFZD4006-3/P4 | FFZD4006-3/P4 | FFZD4010-3/P4 | |
Ball screw (Y-axis) | FFZD3205-3/P4 | FFZD4006-3/P4 | FFZD4006-3/P4 | FFZD4010-3/P4 | |
Main motor power | kW | 3.7 | 3.7 | 5 | 11 |
Machine weight (approx..) | kg | 2800 | 3700 | 4000 |
FEATURES:
This series of CNC cutting machines can achieve multi angle machining through the rotation of ram, and they are mainly suitable for industries such as gearboxes, planetary gearboxes, aviation instruments, and automotive transmissions. The CNC slotting machine can be equipped with a built-in rotary worktable to achieve pin indexing function.
Tech specifications | Unit | BK5030 | BK5032 | BK5040 | BK5050 |
Max. ram length | mm | 300 | 320 | 400 | 500 |
Ram adjustment stroke | mm | 300 | 315 | 315 | 430 |
Number of ram movements | n/min | 20-120 | 20-80 | 20-80 | 0-50 |
Work table size | mm | 550*410 | 800*610 | 800*610 | Φ1000 |
Work table trave (X-axis; Y-axis) | mm | 250*300 | 350*400 | 350*400 | 660*1000 |
Distance between the axis of the tool bearing hole and front of the column | mm | 505 | 600 | 600 | 990 |
Distance between the end face of the cutter support hole and the work table | mm | 540 | 540 | 720 | 740 |
X-axis motor torque | (N.M) | 6 | 7.7 | 7.7 | 23 |
Y-axis motor torque | (N.M) | 6 | 7.7 | 7.7 | 35 |
Ball screw (X-axis) | FFZD3205-3/P4 | FFZD4006-3/P4 | FFZD4006-3/P4 | FFZD4010-3/P4 | |
Ball screw (Y-axis) | FFZD3205-3/P4 | FFZD4006-3/P4 | FFZD4006-3/P4 | FFZD4010-3/P4 | |
Main motor power | kW | 3.7 | 3.7 | 5 | 11 |
Machine weight (approx..) | kg | 2800 | 3700 | 4000 |
