APPLICATIONS:

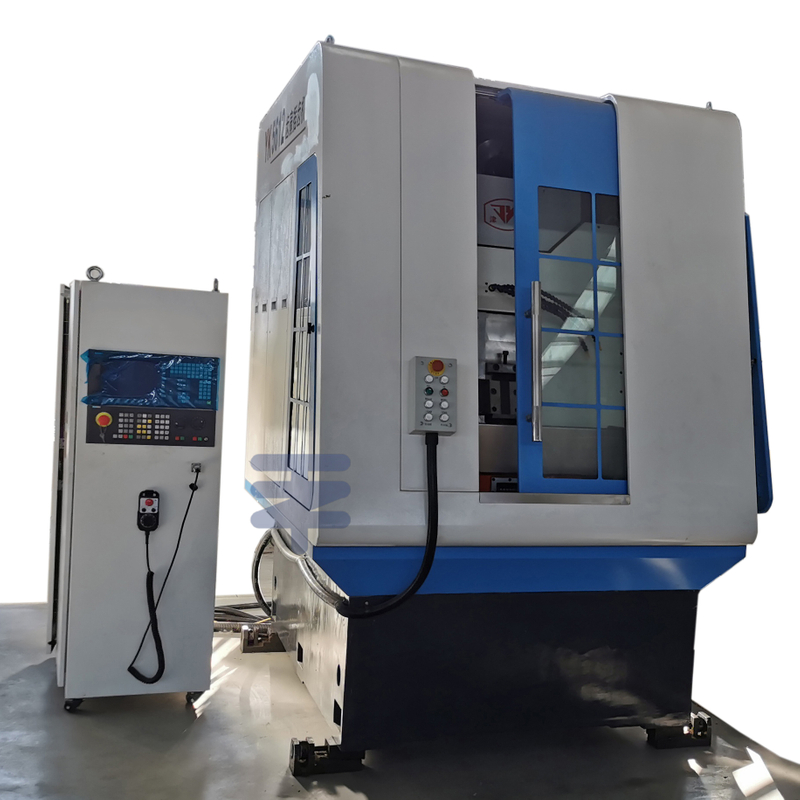

This model of CNC steering sector gear shaper is with radial feed conducted by the column. It is designed for the steering sector manufacturers of the automobile industry for the production of the segment gears with constant ratio, variable ratio or crowned tooth profiles on the steering shafts. It’ mostly suitable for the mass production.
Item | Unit | Specifications |
Max. dia. of workpiece | mm | 120 |
Max. workpiece module | mm | 12 |
Max. face width | mm | 80 |
Max. stroke length of cutter | mm | 90 |
Worktable diameter | mm | 300 |
Main motor power | kW | 11 |
Weight of machine | kg | 11000 |
