APPLICATIONS & FEATURES:
This series of machine tools is widely used in fields such as electric tools, automobiles, construction machinery, airplanes, ships, new energy industries, smart homes, precision machine tools, etc. It features with:
---High precision, the precision of the processed parts can reach GB6-7 level;

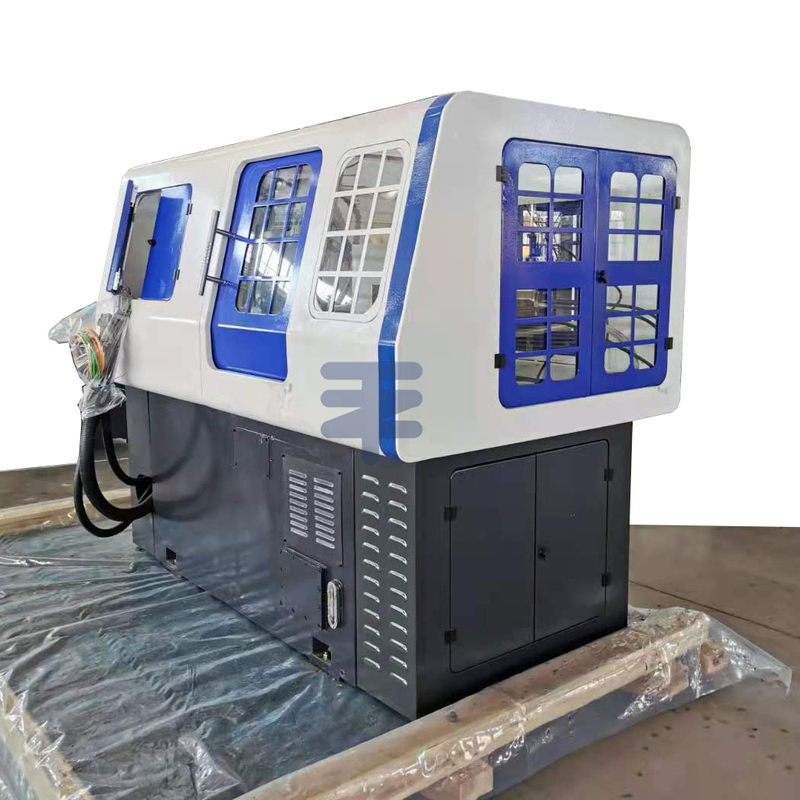

---The 3-axis CNC spiral bevel gear milling machine adopts a traditional cradle roll (X-axis) structure, which has extremely high structural rigidity and transmission rigidity. This series of CNC spiral bevel gear generator maintains stable accuracy and has a long service life.
---This series of gear machine adopts full protection and automatic chip conveyor, equipped with an independent sealed electrical control cabinet.
Item | Unit | YK2212B | YK2232 | YKT2250 | YKD2280 |
Max. workpiece module | mm | 3 | 6 | 10 | 15 |
Max. workpiece diameter | mm | 125 | 320 | 500 | 800 |
Max. transmission ratio | 10:1 | 10:1 | 10:1 | 10:1 | |
Max. face width | mm | 20 | 40 | 70 | 100 |
Teeth number | 5~100 | 5~100 | 5~100 | 4~100 | |
Cutter size | 1/2”,1 1/10”, 11/2”,2”,31/2” | 6”, 7.5’, 9” | 6”, 9”, 12” | 6”, 9”, 12”, 18” | |
Machine weight | kg | 2600 | 6000 | 6500 | 12500 |
