FEATURES:

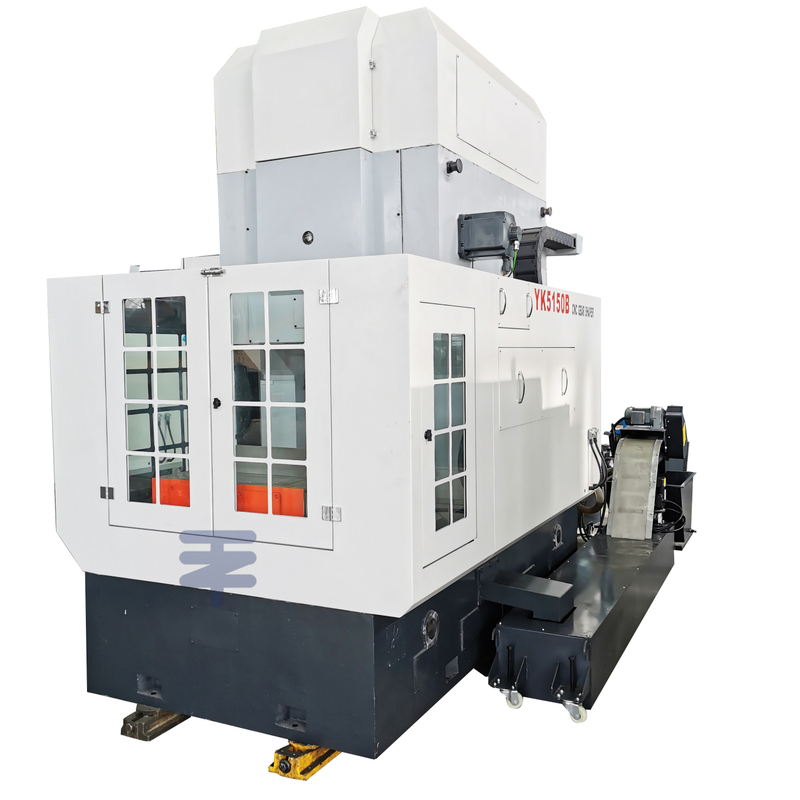

This series of CNC gear shaper is a kind of four axis three linkage machine tool. The column radial feed is driven by high-precision ball screw, which enables the machine tool to have high positioning accuracy and repeatability.
This series of CNC gear shaper has a complete range of models, and different types of machine tools and corresponding configurations can be selected according to gear parameters and characteristics to expand the machining range of machine and complete the machining of parts such as bevel gears and non-circular gears.
Item | Unit | YK5115A | YK5132C | YK5150B | YK5180B | YK51125A |
Max. diameter of work (External) | mm | 150 | 320 | 500 | 800 | 1250 |
Max. diameter of work (Internal) | mm | 60+cutter dia. | 220+cutter dia. | 625 | 1000 | 1250 |
Max. module of work | mm | 4 | 4 | 10 | 12 | 12 |
Max. face width | mm | 40 | 50 | 130 | 280 | 280 |
Number of strokes for cutter spindle | Str/min | 300~1000 | 350~1000 | 80~500 | 30~200 | 30~200 |
Diameter of cutter spindle | mm | 90 | 90 | 90 | 145 | 145 |
