APPLICATIONS & FEATURES:

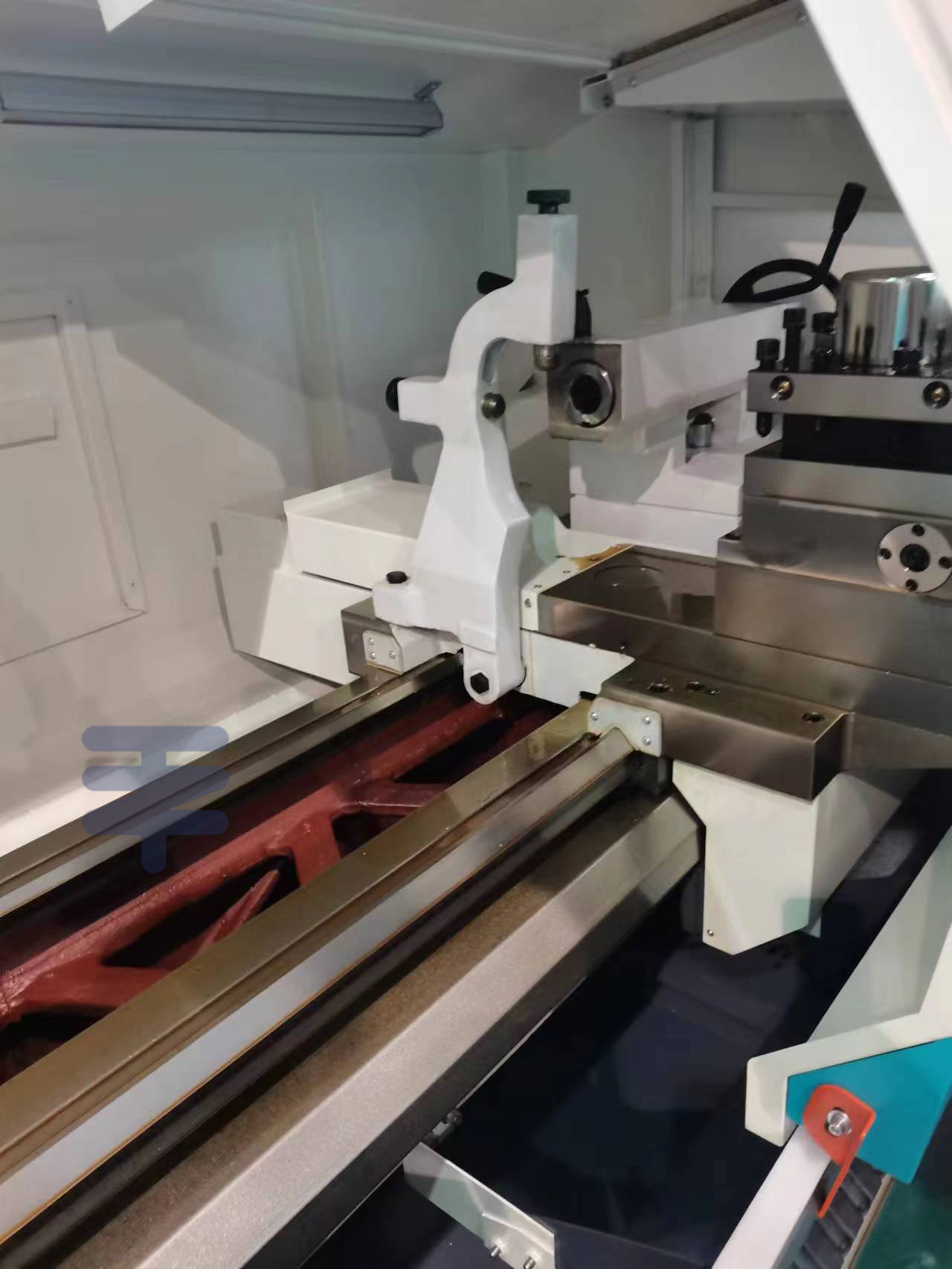

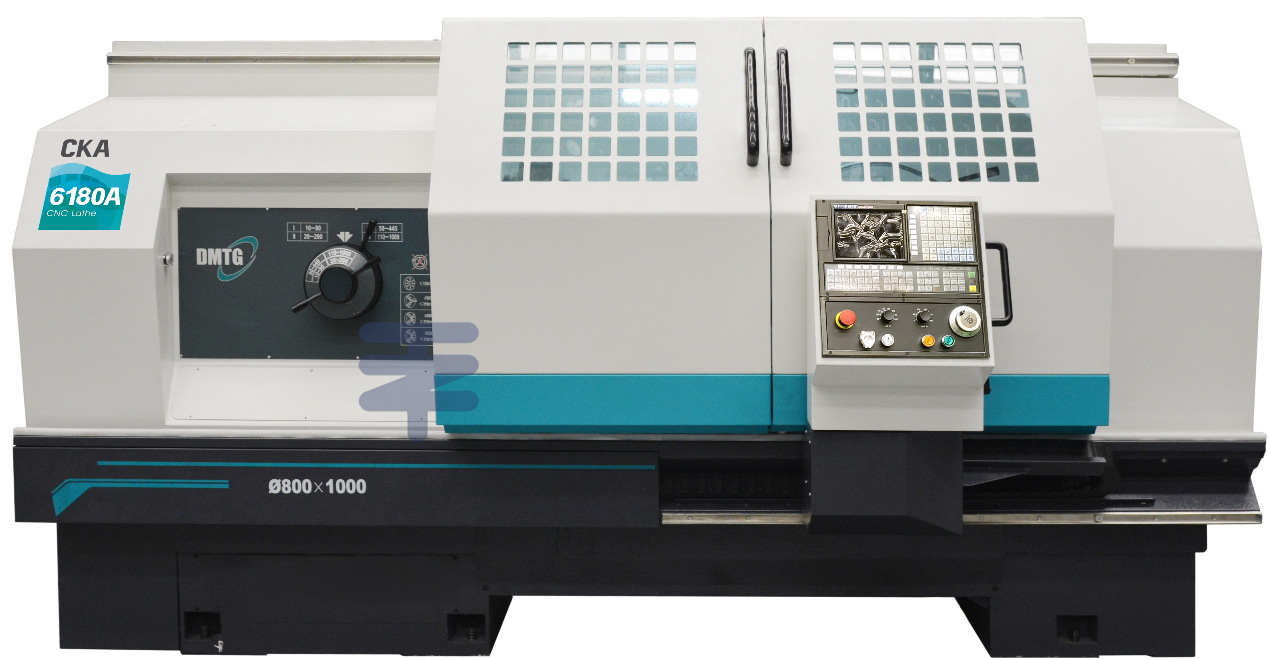

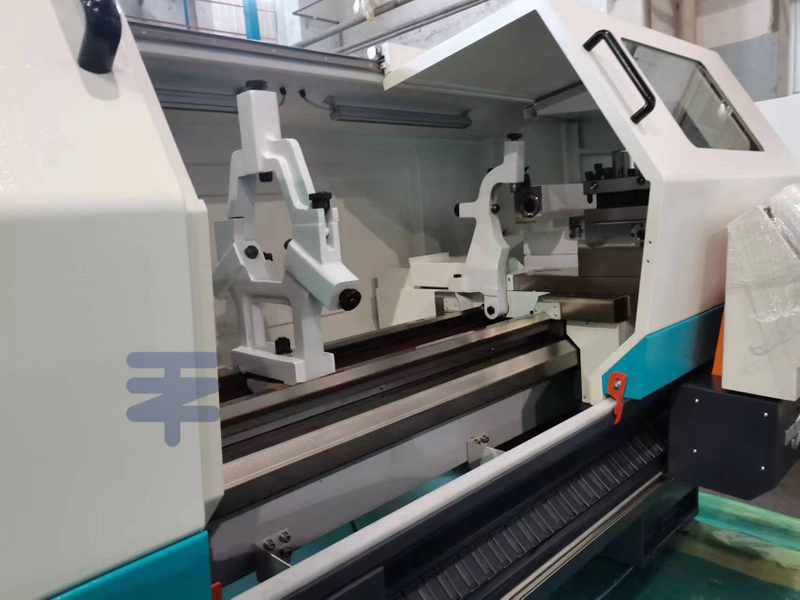

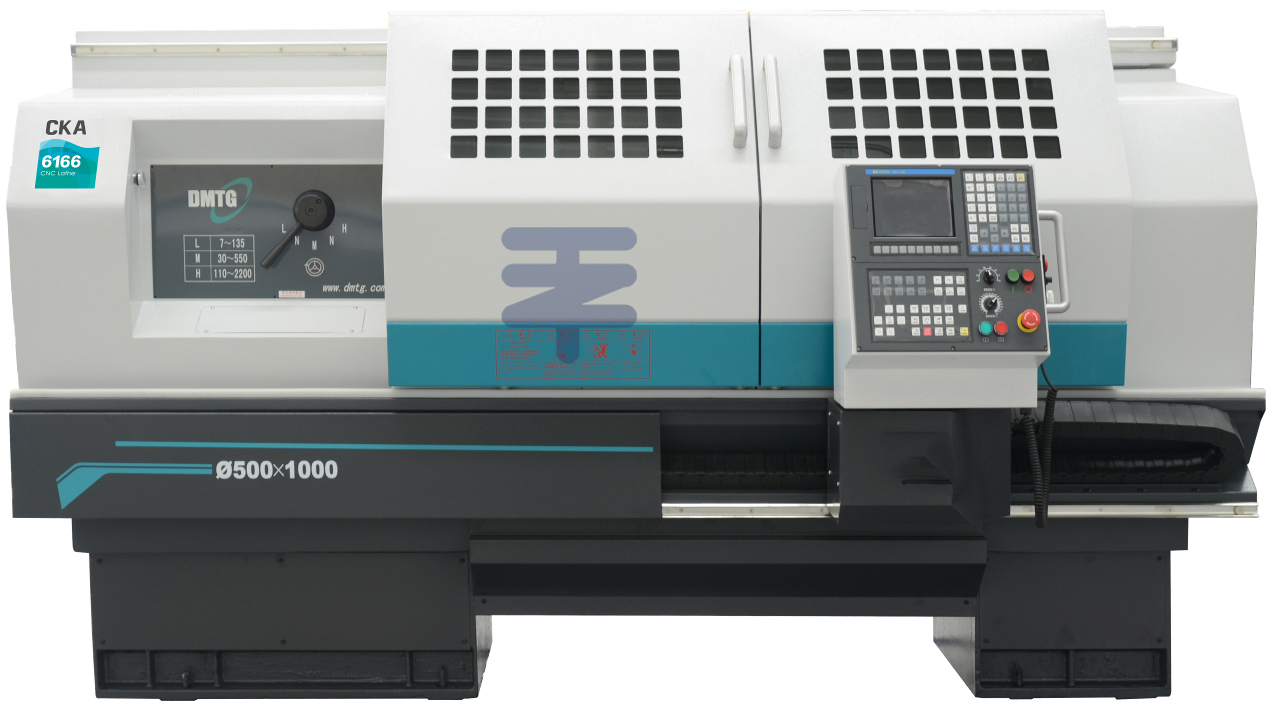

THIS SERIES OF MACHINE IS OF CNC HORIZONTAL LATHE CONTROLLED
BY VERTICAL (Z) AND HORIZONTAL (X) AXES. IT CAN AUTOMATICALLY
COMPLETE CUTTING PROCESSES FOR VARIOUS SHAFT AND DISC
PARTS, INCLUDING INNER AND OUTER CYLINDRICAL SURFACES,
CONICAL SURFACES, CIRCULAR ARC SURFACES, END SURFACES,
GROOVE CUTTING, CHAMFERING, ETC. IT
CAN ALSO TURN VARIOUS TURNING PROCESSES SUCH AS METRIC
STRAIGHT THREADS, END
SURFACE THREADS, AND IMPERIAL STRAIGHT AND TAPERED THREADS.
ALSO IT FEATURES:
HIGH STRENGTH CAST IRON BED BODY RESIN SAND CASTING
THE STANDARD CONFIGURATION OF THE MAIN TRANSMISSION IS
MANUAL OR AUTOMATIC CONTINUOUSLY VARIABLE TRANSMISSION
(SERVO TYPE), WITH OPTIONAL STEP VARIABLE TRANSMISSION (DUAL
SPEED TYPE), MANUAL OR AUTOMATIC CONTINUOUSLY VARIABLE
TRANSMISSION (VARIABLE FREQUENCY TYPE)
NO. | ITEM | CKE6150 | СКЕ 6163 |
1 | Swing over bed | Φ500 mm | Ø 630 |
2 | Swing over cross slide | Φ280 mm | Ø 320 |
3 | Max. workpiece length | 2000 mm | |
4 | Max cutting length | 1930 mm | |
5 | Max turning diameter (vertical 4-p turret) | Φ500 mm | |
6 | Max turning diameter (opt: Horizontal 6-p) | Φ400 mm | |
7 | Max turning diameter (opt: Horizontal 8-P) | Φ370 mm | |
8 | Spindle center height | 250 mm | |
9 | Bed guideway width | 400 mm | 550 |
10 | Spindle motor power | 7.5 kW | 11 |
11 | Spindle bore | Φ82 mm | Ø 100 |
12 | Chuck size | Φ250 mm | Ø 315 |
13 | Taper of spindle bore | front endΦ90 mm, 1:20 | |
14 | Type of spindle nose | D8 | |
15 | Spindle speed ranges | 7-2200 rpm 3 manual gear (opt: auto) + variable | 10-90 20-200 50-445 110-1000 |
16 | Tailstock quill diameter | Φ75 mm | Ø 100 |
17 | Tailstock quill travel | 150 mm | 240 |
18 | Tailstock quill taper | MT 5 | МТ 6 |
19 | Max travel of X-axis | 280 mm | 320 |
20 | Max travel of Z-axis | 935 mm | |
21 | Rapid traverse of X/Z axis | 4/8 m/min | 4/8 4/3.5 |
22 | Tool shank size (vertical 4-position turret) | 25x25 | 32*32 (or 32*25) |
