Features:

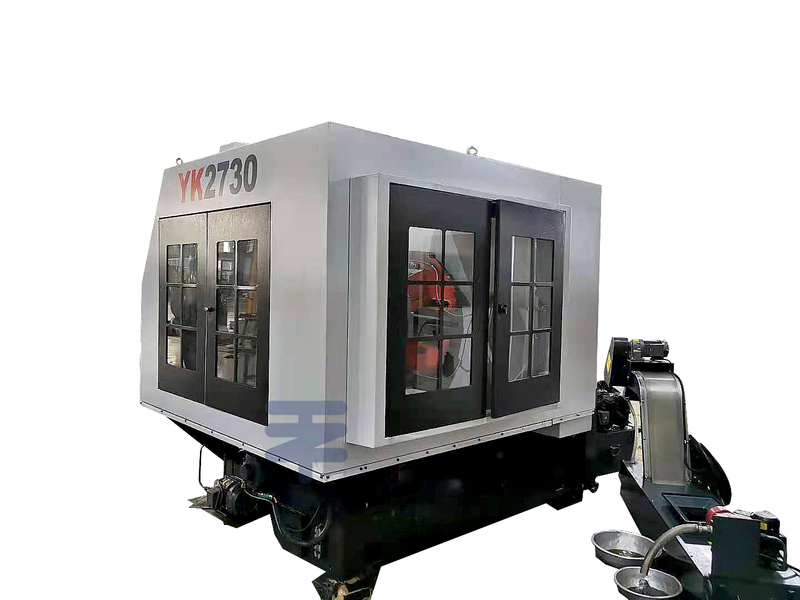

● This is one kind of 4-axis CNC machine: the cradle roll (X-axis), the workpiece rotation (Y-axis), the sliding base feed (Z-axis) and the reciprocating movements of the cutter (S-axis).
● The machine cuts gears with generating principle, of which the gear being cut makes relative rolls repeatedly together with the imaginary generating gear (represented by the reciprocating movements of the cutter).
● The cutter head, the critical part of the machine is mounted on the cradle and the gear being cut is mounted on the spindle. The indexing box is located on the sliding base, and the cradle and the sliding base are fixed on the machine bed.
● Two cutters with linear cutting edges are mounted on the cutter head and make reciprocating linear movements together with the cutter head.
Item | Unit | YK2312 | YK2350 | YK2712 | YK2730 |
Max. workpiece module | mm | 2.5 | 10 | 2.5 | 8 |
Max. workpiece dia. | mm | 120 | 500 | 120 | 300 |
Max, transmission ratio (at 90° shaft angle) | 10:1 | 8:1 | 10:1 | 10:1 | |
Max. face width | mm | 20 | 85 | 11 | 40 |
Cutter size | 6” | 10”/10.5” | |||
Machine weight | kg | 1800 | 6000 | 2000 | 6000 |
